I just got a rough cut today of the video, shot last summer, of the moving of a very large (about 14″ caliper, 30′ height) London Plane Tree.  It’s taken a while to edit several hours of footage down to a half an hour, but it’s about done, and in the next few weeks I hope to have added commentary.  This video is from the project run by Matt Foti’s crew, aided by Mike Furgal, and it showcases the techniques used in air-tool transplanting.  I hope to be able to preview the rough cut at New England Grows, and have the final version completed by the end of February; if there’s enough interest in the arborist community I’ll sell copies.  Stay tuned.

The first of five 12-14' caliper London Plane trees being excavated with air tools and transplanted bare root in August 2009.

Read Full Post »

Posted on Taking Place on July 1, 2009:

A few posts back I mentioned my February 2009 article in Lawn and Landscape Magazine on bare-root tree transplanting using an air spade. That article was preceded by my December 1, 2008 article in American Nurseryman, in which news of the technique debuted. Both articles describe the workshop at which several trees — a Juniperus virginiana, a couple of Acer palmatum, a couple of Betula pendula ‘Gracilis’, among others — were spaded and moved. Both articles outline how to carry out the process, though the Lawn and Landscape article is a bit more explicit. And they compare the merits of different methods of transplanting (tree spaded, ball & burlap, and air spade), including how cost, speed of operation, and effect on tree health may vary.

The beauty of using an air spade to transplant specimen trees is that so much root mass can be preserved and moved with the tree. The following photos of a dwarf Japanese maple (Acer palmatum dissectum), lent by Matt Foti, illustrate just how effective at saving roots this technique is.

Matt and his crews are using an air spade routinely now in transplanting work, because it preserves the tree’s resources so well, minimizing transplant shock and easing re-establishment. They moved this tree in early September of 2008. Take a look:

Acer palmatum dissectum awaiting its move.  Soil under the tree has been lightly spaded to check surface roots.

Acer palmatum dissectum awaiting its move. Soil under the tree has been lightly spaded to check surface roots.

Same tree, roots now exposed by the air spade.  Note how far beyond the tree's dripline these roots extend.

Same tree, roots now exposed by the air spade. Note how far beyond the tree's dripline these roots extend.

Tree being lifted up for the move.  The crew has wrapped its trunk and main limbs, to avoid injury; guy lines insure that it won't tip in transit.

Tree being lifted up for the move. The crew has wrapped its trunk and main limbs, to avoid injury; guy lines insure that it won't tip in transit.

Wrapping thoroughly during this kind of move lessens the chance of bark injury.

Wrapping thoroughly during this kind of move lessens the chance of bark injury.

Tree in its new location, backfilled and awaiting thorough watering.  No staking is necessary, as most of the root plate has been preserved and will continue to support the tree in its new home.

Tree in its new location, backfilled and awaiting thorough watering. No staking is necessary, as most of the root plate has been preserved and will continue to support the tree in its new home.

Read Full Post »

In the year since I’ve been writing about bare-root transplanting and air-tool use, I’ve had the great good fortune to be able to ask questions of the real experts, the arborists who are doing this work and promoting it throughout Massachusetts and the US.  Three in particular have been especially helpful:

Mike Furgal

Mike Furgal

Mike Furgal, the original developer of the air-tool bare-root transplant method, has patiently reviewed my articles and given thoughtful and well-considered answers to all my questions.  He has a tremendous amount of knowledge about trees and transplanting, and he is extremely generous in sharing it.

Matt Foti

Matt Foti

Matt Foti, who hosted the first MAA workshop on air-tool bare-root transplanting (given by Mike and Matt) at his nursery at Nonset Farm, has taken the time to discuss a wide range of tree-related issues with me, and to provide clarifications to help make this information as up-to-the-minute and accurate as possible.  He has been the catalyst to get word of bare-root work out to the MAA and beyond, and has put energy and dedication into practicing, experimenting, and teaching.  Another generous guy.

Carl Cathcart

Carl Cathcart

Carl Cathcart, Consulting Arborist, has provided encouragement and still more information to me from the day we met at the Nonset Farm workshop.  He alerted me to the Cavicchio’s root-washing experiment, he talks up my writing to other arborists, and his encouragement is what got me writing about this stuff in the first place.

In July, Matt and Mike transplanted a number of very large trees for a project in Wellesley, MA.  They (and the homeowner, contractor, and landscape architect) kindly allowed me and a colleague to videotape the moving of two forty-foot high London Plane trees.  Editing of over six hours of videotape is underway now, and I’m hopeful that I’ll have a decent film this fall that Matt and Mike can do some voiceover comments on (not possible on site — air-tools are incredibly loud!).    When we’re done, it should give a fairly comprehensive look at how this method works for transplanting significant trees.  (And I bet Carl’s going to talk it up…)

For all these reasons, I offer my sincerest thanks to Mike, Matt, and Carl.  They are models of generosity, and I couldn’t be more grateful.

Read Full Post »

Matt Foti took these photos from last week’s big transplant project, and they illustrate some useful points.

Air-tool excavation is a very messy process, and it bears mentioning again that eye, ear, head, and face protection are really necessary.  Mike Furgal is wearing a face mask here; a respirator would give him even greater lung protection.  Blowing a good sandy loam is one thing; when pebbles and small rocks show up in the soil they become missiles, so long sleeves and pants should also be worn.

Air-tool excavation is a very messy process, and it bears mentioning again that eye, ear, head, and face protection are really necessary. Mike Furgal is wearing a face mask here; a respirator would give him even greater lung protection. Blowing a good sandy loam is one thing; when pebbles and small rocks show up in the soil they become missiles, so long sleeves and pants should also be worn.

Here is what a well-tied tree looks like in transit.  Note how the roots have been carefully pigtailed, and tiebacks to the tree's trunk are done neatly and professionally, to preserve the roots during excavation and the move.

Here is what a well-tied tree looks like in transit. Note how the roots have been carefully pigtailed, and tiebacks to the tree's trunk are done neatly and professionally, to preserve the roots during excavation and the move.

This project took place in late July, during a week of 85-degree heat.  Leaf turgor pressure was maintained throughout by the trees themselves (aided with some in-process watering).

This project took place in late July, during a week of 85-degree heat. Leaf turgor pressure was maintained throughout by the trees themselves (aided with some in-process watering).

Keeping the pigtails neat from the start makes unbundling and spreading the roots fairly easy.  The tree is now resting in the crater dug for its new home; the crew will unbundle and spread the roots out radially, pack soil underneath them to help level the tree, and backfill, water, and mulch the transplant.  Using a forklift allows the arborists to look under the root plate and gauge its bottom profile, which helps in shaping the floor of the planting crater.

Keeping the pigtails neat from the start makes unbundling and spreading the roots fairly easy. The tree is now resting in the crater dug for its new home; the crew will unbundle and spread the roots out radially, pack soil underneath them to help level the tree, and backfill, water, and mulch the transplant. Using a forklift allows the arborists to look under the root plate and gauge its bottom profile, which helps in shaping the floor of the planting crater.

Project arborists:

Matthew R. Foti Landscape and Tree Service, Concord, MA

Furgal’s Tree and Landscape, Northborough, MA

Read Full Post »

The project showcased in the last post continued this week, with the bare-root transplanting of five London Plane trees (Platanus x acerifolia) and a mature crabapple. Again, Matthew R. Foti Landscape and Tree Service was the prime arborist on this site in a Boston suburb — but this week the Foti crew was joined by Mike Furgal, who was the first arborist to use the air tool for bare-rooting trees in this way.

Mike has been doing this work a bit over five years, and his expertise was the basis for the bare-root workshop sponsored by the Massachusetts Arborists Association and hosted by Matt last August.   Still, neither arborist had moved this many trees of this size — the London Planes ranged from 11 inches dbh to 13″ dbh — and in teaming up they brought all their knowledge to bear to the challenges of this particular project. (The homeowner figured she had hired the A team, given the pair’s depth of knowledge and breadth of experience.)

I took a lot of photos during the first day, and returned today to shoot more. My colleague Bruce Jones and I also shot extensive videotape of the process, which is currently in editing, and will explain the sequence of bare-root transplanting using compressed air — watch this blog for word that it’s done and available.

To avoid computer-use burnout (mine), I’m posting one batch of photos today, and will add another post with more in a few days. I promise, this first batch of images will be plenty to digest for a while….

The site before the five London Planes get moved. The first tree to be excavated and moved is the one furthest from the camera, just to the right of the white trailer. These trees flanked a driveway; in this photo the driveway asphalt has been taken up and the gravel base has been partially removed. Trees are located 3-4 feet from the drive edge.

The site before the five London Planes get moved. The first tree to be excavated and moved is the one furthest from the camera, just to the right of the white trailer. These trees flanked a driveway; in this photo the driveway asphalt has been taken up and the gravel base has been partially removed. Trees are located 3-4 feet from the drive edge.

The mini excavator has dug a partial trench; the trench must be dug in sections, or it would be too difficult to reach in and haul out the blown soil.  A climber is in the tree, tying in lines to be used later during transport.

The mini excavator has dug a partial trench; the trench must be dug in sections, or it would be too difficult to reach in and haul out the blown soil. A climber is in the tree, tying in lines to be used later during transport.

Bare-rooting has begun, and one pigtail of roots is already tied to the tree's trunk.  The tree did not extend any roots into the gravel driveway base, so it only has 3-4 feet of root mass on that side.  It did extend its roots out parallel to the driveway, and radially out into the lawn.  A good depth of soil also let it sink its roots quite deep --  2-3 feet -- into the ground.  Mike Furgal is in the green jumpsuit and facemask.

Bare-rooting has begun, and one pigtail of roots is already tied to the tree's trunk. The tree did not extend any roots into the gravel driveway base, so it only has 3-4 feet of root mass on that side. It did extend its roots out parallel to the driveway, and radially out into the lawn. A good depth of soil also let it sink its roots quite deep -- 2-3 feet -- into the ground. Mike Furgal is in the green jumpsuit and facemask.

Pigtailed roots, and short roots along the driveway edge.

Pigtailed roots, and short roots along the driveway edge.

Good deep soil, good deep roots -- everywhere but at the gravel.

Good deep soil, good deep roots -- everywhere but at the gravel.

Lots of activity at the tree:  two air-tool excavators, an mini excavator digging the trench, a Bobcat taking soil away, and Matt Foti assessing progress.

Lots of activity at the tree: two air-tool excavators, an mini excavator digging the trench, a Bobcat taking soil away, and Matt Foti assessing progress.

Blowing out soil, getting closer to the move.

Blowing out soil, getting closer to the move.

Padding the trunk with layers of burlap for the move.

Padding the trunk with layers of burlap for the move.

Giant forks have been run under the tree, and the loader is getting ready to lift it. Four taglines are visible in this shot; they won't prevent the tree from falling, but help indicate how it is balanced during the move.

Giant forks have been run under the tree, and the loader is getting ready to lift it. Four taglines are visible in this shot; they won't prevent the tree from falling, but help indicate how it is balanced during the move.

Lifting and backing, slowly and very carefully.

Lifting and backing, slowly and very carefully.

A pause for the forks to be positioned more firmly.

A pause for the forks to be positioned more firmly.

Big machine, bigger tree. The root plate on this tree extended about 18 feet across at its maximum width. Transporting a large, upright live tree is a slow-speed operation.

Big machine, bigger tree. The root plate on this tree extended about 18 feet across at its maximum width. Transporting a large, upright live tree is a slow-speed operation.

Compare this root plate to that of a B&B tree, or a tree-spaded one (though this tree is too large for a tree spade), and it's clear what an advance this technology promises to be in benefiting the health of trees to be transplanted. The tree's energy reserves are largely stored in the roots; save the roots, reduce stress on the tree, and speed re-establishment after planting.

Compare this root plate to that of a B&B tree, or a tree-spaded one (though this tree is too large for a tree spade), and it's clear what an advance this technology promises to be in benefiting the health of trees to be transplanted. The tree's energy reserves are largely stored in the roots; save the roots, reduce stress on the tree, and speed re-establishment after planting.

The tree, post-planting. The arborists assessed how deep the root mass was and how it was formed, and dug the planting hole to accommodate, roughly, its form. Once the tree is placed in the hole, the roots are spread out radially by hand, and loam shovelled in around, under, and over them. Watering starts during the digging process, once the tree has been levelled, so that a loam slurry anchors the root plate and tree to its new site. A well is formed to retain moisture and more water is added.

The tree, post-planting. The arborists assessed how deep the root mass was and how it was formed, and dug the planting hole to accommodate, roughly, its form. Once the tree is placed in the hole, the roots are spread out radially by hand, and loam shovelled in around, under, and over them. Watering starts during the digging process, once the tree has been levelled, so that a loam slurry anchors the root plate and tree to its new site. A well is formed to retain moisture and more water is added.

Two to four inches of mulch is added around the tree, and kept away from the trunk.

Two to four inches of mulch is added around the tree, and kept away from the trunk.


Minor pruning to fix a lamppost-branch conflict.

Minor pruning to fix a lamppost-branch conflict.

The transplanted tree seven hours later, in its new home.

The transplanted tree seven hours later, in its new home.

Matthew R. Foti Landscape and Tree Service, Lexington, MA – lead arborist

Furgal Tree and Landscape, Northborough, MA – consulting arborist

Robert Hanss Inc. Landscape Construction – landscape contractor

Reed Hilderbrand – landscape architects (Chris Moyles, project manager)

Read Full Post »

Here’s a series of photos from an air-tool transplant project executed last week by a crew from Matthew R. Foti Landscape and Tree Service of Lexington, MA. These guys have been using air tools to bare-root trees for some time now, and they have refined the process pretty skillfully.

Shown here are a very large treeform Taxus and a smallish Cornus kousa. The Kousa Dogwood had been planted only about 8′ away from the Yew, and probably had been sheltered by it in its early days. At this stage, though, their crowns had been competing, and a revised landscape design gave further reason to spade out and move both plants.

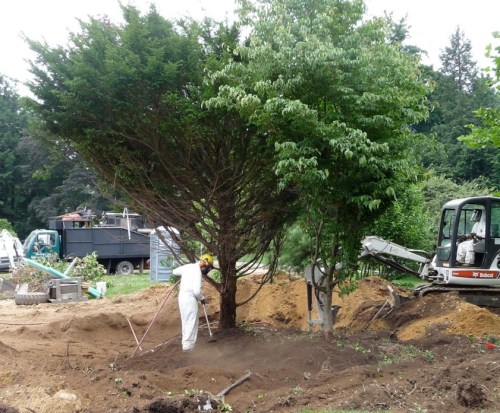

Taxus and Cornus kousa planted closely together, as part of a larger planting that has already been dismantled.

Taxus and Cornus kousa planted closely together, as part of a larger planting that has already been dismantled.

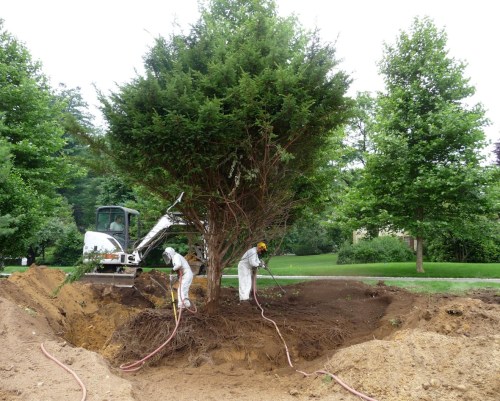

The Bobcat has dug a trench, and the crew is blowing soil into it. Note that the Yew's branches have been tied up to keep them out of the way.

The Bobcat has dug a trench, and the crew is blowing soil into it. Note that the Yew's branches have been tied up to keep them out of the way.

Taxus is a deeply rooted plant -- notice the trench depth, and presence of roots in the lower part of the mound.

Taxus is a deeply rooted plant -- notice the trench depth, and presence of roots in the lower part of the mound.

Soil and rocks fly during the process, so eye and ear protection are essential. The white jumpsuits keep these guys from getting covered with soil (color is optional).

Soil and rocks fly during the process, so eye and ear protection are essential. The white jumpsuits keep these guys from getting covered with soil (color is optional).

Bobcat continually takes blown soil out of the trench and stockpiles it.

Bobcat continually takes blown soil out of the trench and stockpiles it.

Double-teaming a soil clod. Pushing the nozzle down into the root mass helps loosen soil inside it.

Double-teaming a soil clod. Pushing the nozzle down into the root mass helps loosen soil inside it.

Pigtailing the roots -- tying them in long bundles -- helps keep them protected and out of the way.

Pigtailing the roots -- tying them in long bundles -- helps keep them protected and out of the way.

Twine holds the pigtails together; when the plant is ready to move, twine can also be used to tie the pigtails back to the trunk, to keep them from dragging during transport.

Twine holds the pigtails together; when the plant is ready to move, twine can also be used to tie the pigtails back to the trunk, to keep them from dragging during transport.

Progress shot. Look at how deep the trench is. The Taxus is nearly ready, and shortly the crew will move on to the Cornus kousa; when both trees have been blown out, they will be separated and moved to new locations.

Progress shot. Look at how deep the trench is. The Taxus is nearly ready, and shortly the crew will move on to the Cornus kousa; when both trees have been blown out, they will be separated and moved to new locations.

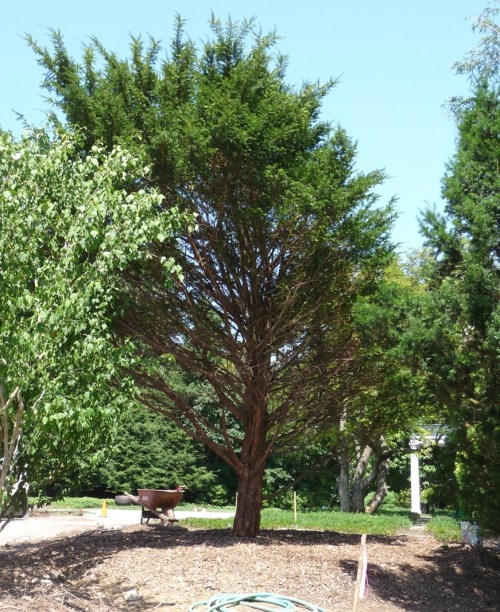

The following week: Taxus in a new spot, looking relaxed and healthy

The following week: Taxus in a new spot, looking relaxed and healthy

Final shot. Asymmetry in the Taxus crown reflects its previous location in a larger planting.

Final shot. Asymmetry in the Taxus crown reflects its previous location in a larger planting.

.”]<img title=”p1020427″ src=”http://takingplace.files.wordpress.com/2009/07/p10204273.jpg&#8221; alt=”Final shot. Asymmetry in the Taxus crown reflects its previous location in a larger planting.” width=”499″ height=”639″ />[/caption]

Read Full Post »
