Air-tool transplanting is continuing here in Massachusetts; while it hasn’t yet become commonplace, arborists in this part of the world are conversant with the techniques, and some firms have been routinely been moving trees bare-root for the last few years.  Leahy Landscaping of Lynn, MA, has a team of transplanters, led by Mass. Certified Arborist Bob Dobias.  Bob recently sent me some photos of a project his crew carried out this past summer; they moved a beautiful 14′ Fastigiate Beech in Salem with air.  They relocated the tree from a location right next to a building to a spot further out on the property, where it can now grow to its full potential.  Here are the pix Bob sent:




This tree has been growing nicely next to a condo entry, but was likely planted there when it was a much smaller specimen.




Bob has exposed the topmost roots, and is working his way underneath the root mass.  Note that he’s wearing ear protection and has dust barriers set up around the work area.


Fastigiate Beech is a narrow tree, and while a blowout to the dripline frees most of the roots, some root mass still had to be cut.  Bob reports that his crew cut one root that was growing under the driveway.


Nice root mass on this tree.  The time had arrived for this tree to be transplanted; notice that the roots to the right are shorter and have been redirected down by the presence of the building wall.  A tree that grows for too long this close to a wall might not be as readily moved as this one — not because it can’t be dug out, but because the root mass has grown too asymmetrically for the tree to stand well away from the wall.




The Beech being introduced to its new home.  According to Bob, the crew could have lifted the tree by hand, but decided to use the machine to minimize hazards to it.  For the actual move, they tied the tree to the forks; this shot, it has been untied and is being guided into the planting hole.




And from a different angle.  The hole receiving it could be a bit wider, to make the backfilling and mudding in easier, especially as there are no obstructions around it.




With the tree placed in its new home and backfilled, the crew waters and muds it in.  Leahy added better loam for backfill, and secured the tree with duckbills, to insure stability while it grows into the new location.




Proud Leahy crew and Fastigiate Beech.  The Beech should now be able to grow a little fuller both above and below ground on the side that had faced the building.  The transplant operation took about six hours from start to finish.

Bob reports that the tree has experienced some stress from the move, but he expects it will equilibrate crown and root growth and leaf out well next year.  We’ll keep an eye out for more pix next year, to check its progress.

Fastigiate Beech moved by:

Leahy Landscaping, Lynn, MA

Arborist in charge:  Bob Dobias, MCA

Crew:  Alfredo Esteban, Shane Corcoran, Greg Beatrice







Read Full Post »

It’s that time of year again!  This Friday is Arbor Day across America, and for Massachusetts arborists it’s the Arbor Day of Service.  Arbor Day of Service is a program developed by the Mass. Arborists Association several years ago.  For it, the MAA “partners with local tree wardens, community leaders, and civic organizations to identify worthy projects in need of professional tree care”.  Tree companies and individual arborists pick the project they want to participate in, and donate their time to plant, prune, and care for trees on the selected sites.  It’s a great program; various organizations which otherwise might not be able to carry out the needed work at one time benefit from the Arbor Day of Service blitz approach, and the arborists team with one another to give back to their communities.   Last year the arborists donated over $250,000 in services in that one day to the communities and organizations they chose.

To read more about Arbor Day itself, check out the Arbor Day Foundation website.  To find out more about the MAA’s Arbor Day of Service, take a look at the MAA website, which also has a signup sheet if you’re a member and haven’t yet put your name in to work on one of this year’s projects.

The two projects I’m most aware of this year are at Tower Hill Botanic Garden in Boylston, MA (worth visiting whether you’re there to do pruning or tree care or just to enjoy the site and gardens) and at Boston Common, one of the nation’s oldest common open spaces.

ImageI

I suspect this Boston Common pruning took place some time before the MAA started the Arbor Day of Service.   Still, it’s good to see the tradition circle back to the Common…

Read Full Post »

The Massachusetts Arborists Association has a new volunteer initiative starting in 2010.  They aim to build on the traditional Arbor Day celebration by instituting a statewide volunteer service day on that day, which falls on April 30, 2010.

To get the ball rolling, the MAA is inviting anyone to identify potential tree care projects in their own communities, and then to post those project ideas on the Arbor Day link at www.MassArbor.org.  They hope to get ideas from all 351 Massachusetts cities and towns by January 15.  From that list, MAA members and member companies will choose projects for their own Arbor Day of Service volunteer effort.

This is a great way for professional arborists to make a contribution to the civic good, and for cities and towns to reap the benefits of a concerted professional effort.  Safety pruning, tree planting, hazard tree removal, ornamental pruning — a community you drive through daily may have the project that’s perfect for your company to tackle on Arbor Day.  To submit a project for Arbor Day of Service consideration by the MAA arborists, visit http://www.MassArbor.org by January 15, and click on Arbor Day.

Help younger generations grow up with the Arbor Day of Service.

Read Full Post »

The Massachusetts Arborists Assocation bare-root workshops — one in August 2008, and one in August 2009 — have been spreading word through the Commonwealth about the benefits of air-tool tree transplanting, and word is travelling throughout Massachusetts horticulture circles now.

A couple of weeks ago I was chatting with Kristen DeSouza, one of the horticulturists at the New England Wild Flower Society‘s Garden In The Woods, and she mentioned that she had passed my name along to Sonia Baerhuk, who tends the grounds at Watertown’s Perkins School for the Blind.  Kristen told me that Sonia and her crew have been using air tools to  transplant trees on the school’s grounds for the last several months, and suggested that I get in touch with her.

And so last Thursday, a couple of emails and a phone call later, I pulled in to the visitor’s parking area at the Perkins School.  Sonia soon arrived in one of the grounds department’s Gators.  She very kindly showed me around the campus, explaining that a new and large building project had required the removal of dozens of large trees.

It’s a scenario typical of many institutional sites:  a program outgrows its home, the phasing of a master plan leads to a shifting of facilities or the construction of a new building, and the vegetation on site must either be removed or relocated.  Having worked at Perkins for several years, Sonia was no stranger to this course, of events, but still, she had been dismayed to see so many large specimen trees being cut and fed into the chipper.

Though the grounds crew does most of its own tree work, over the years they have called in arborists for their expertise, and Sonia knew and trusted Matt Foti’s expertise.  Matt had told her about the air-tool method, and on the strength of his recommendation, she signed up for the MAA’s Elm Bank bare-root workshop this past August.  At it, she absorbed as much information as possible.  She came away from the day’s event convinced that air-tool excavation and transplant was the best way for her crew to relocate any salvageable campus trees.

So Sonia and her boss Rich Falzone equipped the crew with an Air Spade and an Air Knife, coveralls, eye protection, ear protection, and respirators, and began to direct the relocation of trees.

To date, the Perkins crew — Sonia Baerhuk, Rolando Ortega, Mynor Tobar, and Santo Masciari — has moved several 15-20′ Norway spruce, a fastigiate white pine, a Forest Pansy redbud, several apples, and a beautifully structured 25-30′ tall Halesia.

On the day I visited, they were ready to move another Norway spruce from a location that is slated to become a pondside patio.  Its new home would be a lawn next to a parking lot to which they had already moved a number of evergreens.  The new planting is beginning to screen the lot from adjacent buildings; over time, this grove will shade the parking lot and the walkway near it.

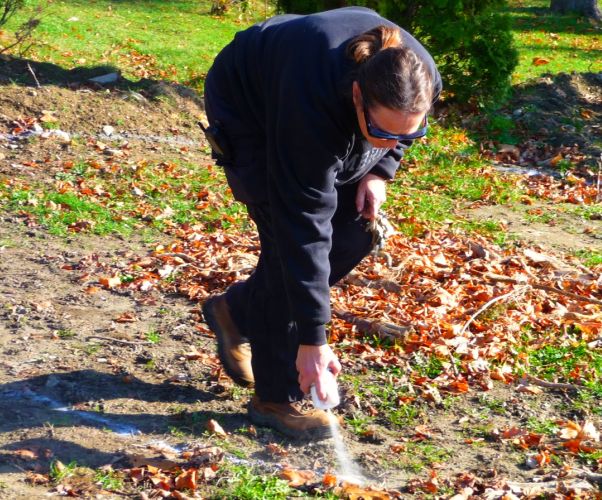

Sonia Baerhuk marking the new home of a 15' Norway spruce to be relocated.

Fifteen-foot Norway spruce in its original location next to the campus pond. The crew discovered that the Norway's roots were interwoven with roots from other nearby trees. This tree was flat on the side facing the fence.

Currently, the grounds crew rents compressors. These two generated air for an Air Knife and an Air Spade. Note the plywood barriers set up to prevent soil overspray onto the lawn. In this project, the crew did not dig a trench to hold blown-out soil; they simply started blowing soil out from the trunk and followed the roots out to and beyond the dripline.

Sonia and Rolando, kitted out in their PSE: coveralls, gloves, hats and hoods, ear protection, eye protection, and respirators.

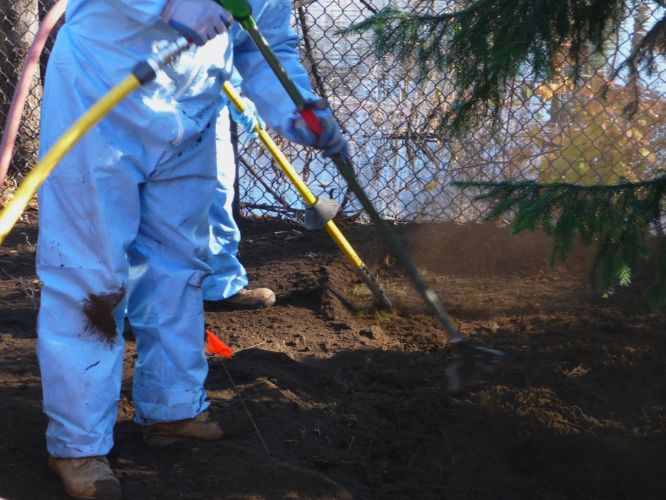

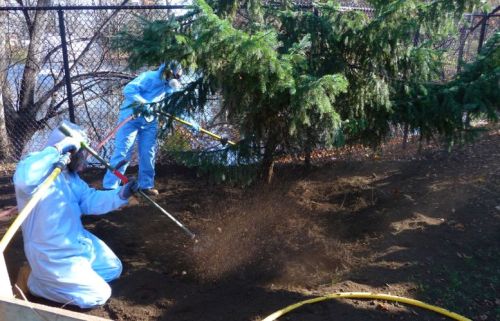

Blowing soil off the roots took about three hours. Sonia likes to divide the root mass diameter into quadrants and work systematically, while Rolando prefers to work all around the tree; when they work in tandem they use whichever method fits the site conditions best.

Edges of the original B&B root ball are barely visible here; it was roughly 24-30" across. Rolando and Sonia discovered the wire basket still around it. They also discovered that the root flare sat several inches down in the original root ball.

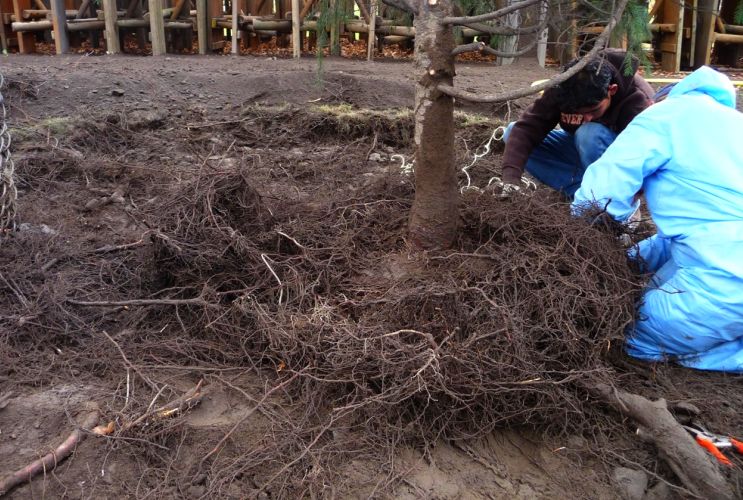

The spruce was anchored with a thick mat of fibrous roots; the crew found virtually no roots larger than 1/2" in diameter. Here, they are pruning root ends under the eighteen-inch deep mat.

Still pruning the mat, and rolling it up toward the trunk to blow soil out from under the tree.

The root mat rolled up and bound in burlap for further blowing-out and moving.

Project site:  The Perkins School for the Blind, Watertown, MA

Project manager:  Sonia Baerhuk

Project crew:  Rolando Ortega, Mynor Tobar, Santo Masciari

Read Full Post »

In the year since I’ve been writing about bare-root transplanting and air-tool use, I’ve had the great good fortune to be able to ask questions of the real experts, the arborists who are doing this work and promoting it throughout Massachusetts and the US.  Three in particular have been especially helpful:

Mike Furgal

Mike Furgal

Mike Furgal, the original developer of the air-tool bare-root transplant method, has patiently reviewed my articles and given thoughtful and well-considered answers to all my questions.  He has a tremendous amount of knowledge about trees and transplanting, and he is extremely generous in sharing it.

Matt Foti

Matt Foti

Matt Foti, who hosted the first MAA workshop on air-tool bare-root transplanting (given by Mike and Matt) at his nursery at Nonset Farm, has taken the time to discuss a wide range of tree-related issues with me, and to provide clarifications to help make this information as up-to-the-minute and accurate as possible.  He has been the catalyst to get word of bare-root work out to the MAA and beyond, and has put energy and dedication into practicing, experimenting, and teaching.  Another generous guy.

Carl Cathcart

Carl Cathcart

Carl Cathcart, Consulting Arborist, has provided encouragement and still more information to me from the day we met at the Nonset Farm workshop.  He alerted me to the Cavicchio’s root-washing experiment, he talks up my writing to other arborists, and his encouragement is what got me writing about this stuff in the first place.

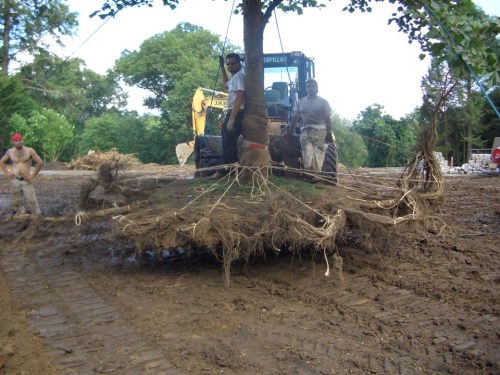

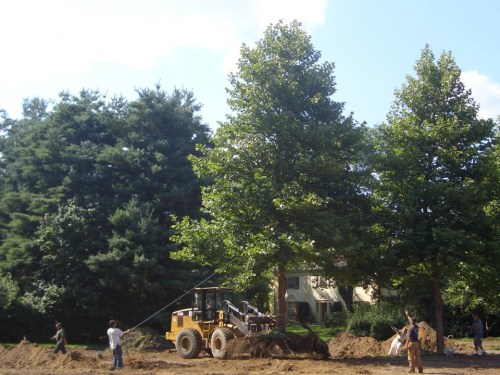

In July, Matt and Mike transplanted a number of very large trees for a project in Wellesley, MA.  They (and the homeowner, contractor, and landscape architect) kindly allowed me and a colleague to videotape the moving of two forty-foot high London Plane trees.  Editing of over six hours of videotape is underway now, and I’m hopeful that I’ll have a decent film this fall that Matt and Mike can do some voiceover comments on (not possible on site — air-tools are incredibly loud!).    When we’re done, it should give a fairly comprehensive look at how this method works for transplanting significant trees.  (And I bet Carl’s going to talk it up…)

For all these reasons, I offer my sincerest thanks to Mike, Matt, and Carl.  They are models of generosity, and I couldn’t be more grateful.

Read Full Post »

Air spade tree transplanting.  Warning:  Long post, tons of photos.

Probably the biggest draw of the Elm Bank workshop on September 10, 2009, was Mike Furgal’s moving of a 6″ caliper elm hybrid.  Mike first developed the method of air-tool bare-root transplanting in 2004, and has been working on it since, moving ornamental specimens and canopy trees with great success.  The biggest tree he has moved was a 21″ caliper, 50′ high mulberry (it was the owner’s choice), in November 2008; this past July he worked on Matt Foti’s project of moving several large trees, including the five 40′ high London plane trees showcased in posts on www.takingplace.net.

(To find those posts, click on the link in the last sentence, and then click on the ‘Plants’ link in Categories listed on the right side of the page.  All posts related to air-tool transplanting will pop up; the links for the London plane project are dated July 29, July 31, August 3, and August 7.  Browse among earlier ‘Plants’ posts for more articles on bare-root transplanting.)

So Mike has lots of experience with this work, and continues to think about the best ways — for the trees and for the crews — to move trees.  He made a number of observations in his Elm Bank talk about air-tool transplanting:

1.  The larger the tree, the more cost-effective the bare-root move is.

2.  Bare-root transplanting lets roots settle immediately into the soil on the new site.  With no root ball/surrounding soil interface to impede moisture saturation or interrupt moisture flow, the roots are able to adapt right away and start growing.  As a result, watering and aftercare are also easier and more effective.

3.  The greater the depth of good quality soil, the more apt roots are to grow down as well as out.

4.  Arborists and landscape architects MUST stress the need for sustained aftercare once a tree has been bare-root transplanted.  One year of attentive watering is good, but two, three, four, or even five years is better.

5.  Mike asked “Do we arborists plant trees or do we install them?”  When you install a B&B tree, he suggested, you dig a hole, put the tree in the ground, backfill, and water.  When you plant a tree, you remove the wire basket, remove the burlap and twine, possibly break up the soil mass, spread the roots out to promote outward growth, and water sufficiently for the next couple of years for the tree to root into its home.  ‘Installing’ a tree makes the tree simply a product, a commodity that can (and may have to be) replaced.  ‘Planting’ a tree recognizes and attends to the needs of this living organism, and promotes its good health and sustained long life.

6.  Air tools dry out root surfaces — pre-watering of the root mass and soil around a tree to be moved helps the tree hydrate and maintain turgor pressure during the transplant operation.  Mike suggested that trees may have a greater tolerance for short-term root drying than is commonly assumed, and urged the audience to observe what happens to the roots of trees they may move bare-root, and how those trees react to the process.

7.  When you use an air tool to excavate a tree for transplanting, dig your soil trench in sections, and dig it deep enough (measured in feet, not inches) to hold quite a bit of blown out soil, thus minimizing the number of times it needs to be emptied.  Mike pointed out that it’s necessary to consider how best to move the excess soil around; it’s important to plan the job at the outset, including how to access the plant(s) to be moved, how to avoid plants to remain, and where to stockpile the blown-out soil.

8.  The bare-root process can allow arborists use lighter equipment (depending on tree size, of course) than may be necessary for B&B trees.  A 2000-pound mini-excavator can pick up a six-inch elm, while to move that same tree B&B would require a large backhoe or front-end loader.

9.  The more fibrous a tree’s root system, the less likely it is to need cabling after a bare-root transplant.  A root mass’s size, the nature of its rooting, and the relationship between those factors and the tree’s size will also factor into the decision to cable a newly-planted bare-root tree.

Mike had blown soil out from around the roots of the Elm Bank elm the day before the workshop, and kept them covered until the workshop demonstrations began.

Healthy elm tree, soil blown off its roots, ready to be moved.

Healthy elm tree, soil blown off its roots, ready to be moved.

Closeup of the roots.  This root mass measured 14 feet across at its widest.  Roots have been pigtailed -- that is, tied together and lifted to keep them from breaking during the air-tool process and move.

Closeup of the roots. This root mass measured 14 feet across at its widest. Roots have been pigtailed -- that is, tied together and lifted to keep them from breaking during the air-tool excavation and move.

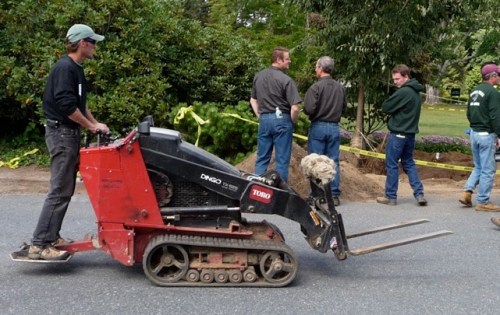

Dingo used to move the tree, whose new location was about fifty feet away from where it originally stood.

Dingo used to move the tree, whose new location was about fifty feet away from where it originally stood.

Mike Furgal and his assistant planning their course of action.  Note the tagline leading out from the canopy; it will be used to stabilize the tree during the move and backfill operation.

Mike Furgal and his assistant planning their course of action. Note the tagline leading out from the canopy; it will be used to stabilize the tree during the move and backfill operation.

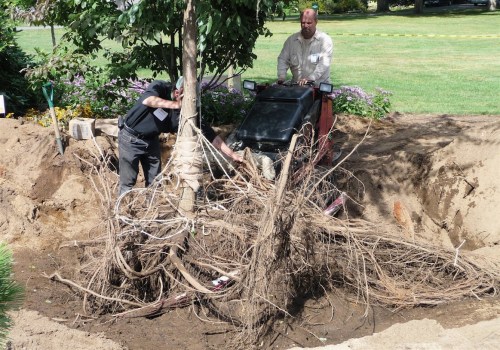

Mike directs the Dingo forks under the root plate while his assistant holds the trunk stable.  Note the heavy burlap padding both on the Dingo and on the tree trunk.

Mike directs the Dingo forks under the root plate while his assistant holds the trunk stable. Note the heavy burlap padding both on the Dingo and on the tree trunk.

Lifting the tree.  Trunk padding rests on Dingo padding; tagline helps the trunk and canopy remain steady.

Lifting the tree. Trunk padding rests on Dingo padding; tagline helps the trunk and canopy remain steady.

Beginning to move the tree requires that it sit firmly on the forks, and remain balanced through the move.

Beginning to move the tree requires that it sit firmly on the forks, and remain balanced through the move.

Cutting the last few anchored roots, and any roots broken in the process.  Loppers work best; be sure they are sharp enough to make clean cuts (a set of root-pruning tools is useful, as cutting dirty roots with top-growth tools will ruin their blades quickly).

Cutting the last few anchored roots, and any roots broken in the process. Loppers work best; be sure they are sharp enough to make clean cuts (a set of root-pruning tools is useful, as cutting dirty roots with top-growth tools will ruin their blades quickly).

Moving the elm up its soil ramp and out of its plant bed; an attending arborist jumps in to help the roots past this thriving pine.

Moving the elm up its soil ramp and out of its plant bed; an attending arborist jumps in to help the roots past this thriving pine.

Elm tree on the move.  Stabilizing the trunk and moving slowly keeps the job safe.

Elm tree on the move. Stabilizing the trunk and moving slowly keeps the job safe.

Big canopy.  This year's growing season was moist and fairly cool, leading to lots of topgrowth and long twig extension.

Big canopy. This year's growing season was moist and fairly cool, leading to lots of topgrowth and long twig extension.

Mike steers the Dingo to the crater he has dug.  It is relatively shallow, to match the elm root mass depth, and wide (though not wide enough at first -- a couple of trenches had to be dug beyond the crater at the last minute to some extra-long roots).

Mike steers the Dingo to the crater he has dug. It is relatively shallow, to match the elm root mass depth, and wide (though not wide enough at first -- a couple of trenches had to be dug beyond the crater at the last minute to some extra-long roots).

Lowering the elm into its crater.

Lowering the elm into its crater.

Whoa!  A moment of excitement, when tree weight and crater's-edge sloped combined to tip the Dingo on its tracks.

Whoa! A moment of excitement, when tree weight and crater's-edge slope combined to tip the Dingo on its tracks.

The Iwo Jima shot.  A team of volunteers ran in to right the tree.

The Iwo Jima shot. A team of volunteers ran in to right the tree.

Holding the tree upright once the Dingo forks have been pulled out.

Holding the tree upright once the Dingo forks have been pulled out.

Again, holding the tree upright.  The pigtails now get cut open and roots spread out radially from the trunk.

Again, holding the tree upright. The pigtails now get cut open and roots spread out radially from the trunk.

Freeing the roots, beginning to dig in backfill, and watering to make a soil slurry that will eliminate air pockets and help anchor the spread-out root plate.

Freeing the roots, beginning to dig in backfill, and watering to make a soil slurry that will eliminate air pockets and help anchor the spread-out root plate.

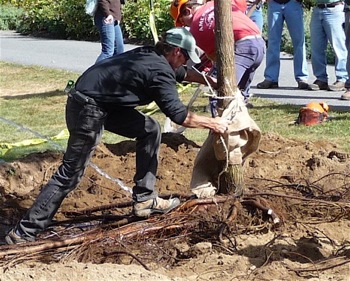

With the tree in its new location, burlap padding the trunk may be removed.

With the tree in its new location, burlap padding the trunk may be removed.

Digging in the root mass.  It's important to pack the soil directly under the tree's trunk, to eliminate air holes and ensure against settling of the tree lower in its hole over time.

Digging in the root mass. It's important to pack the soil directly under the tree's trunk, to eliminate air holes and ensure against settling of the tree lower in its hole over time.

Big canopy on this tree, with a root mass to match.

Big canopy on this tree, with a root mass to match.

A bucket on the Dingo shakes backfill -- the native soil onsite in this case -- into the crater as workers wield shovels and a hose.

A bucket on the Dingo shakes backfill -- the native soil onsite in this case -- into the crater as workers wield shovels and a hose.

Trunk flare, placed in the proper relationship to finish grade.  Note the cut root ends; clean cuts with sharp tools let the wounds heal quickly.

Trunk flare, placed in the proper relationship to finish grade. Note the cut root ends; clean cuts with sharp tools let the wounds heal quickly.

More backfill, more water, and someone still holds the tagline for safety.  The Dingo never drives over the root mass, but drops soil onto it from outside.

More backfill, more water, and someone still holds the tagline for safety. The Dingo never drives over the root mass, but drops soil onto it from outside the planting hole.

Still more water, as the backfilling continues.

Still more water, as the backfilling continues.

Building the well wall, as water continues to flow.

Building the well wall, as water continues to flow.

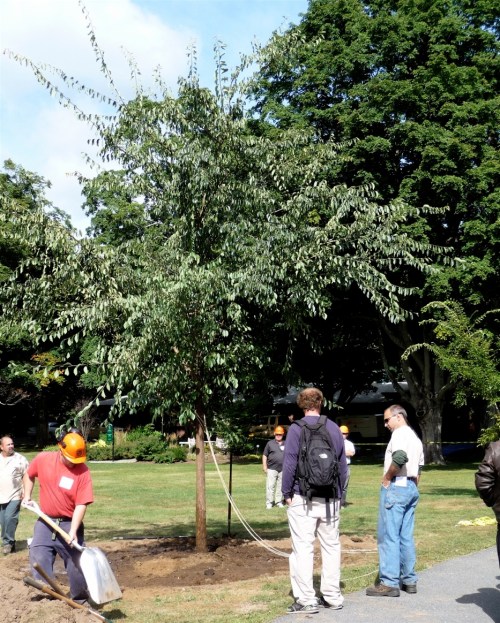

Six-inch caliper elm tree in its new location.  Some wilt is evident -- likely because the tree was excavated the day before and the roots had been exposed through the course of the several-hours long workshop.

Six-inch caliper elm tree in its new location. Some wilt is evident -- likely because the tree was excavated the day before and the roots had been exposed through the course of the several-hours long workshop. The tagline finally lies slack. Two to four inches of mulch will next be added, and kept away from the trunk.

Demonstrating arborist at this station:

Mike Furgal, Furgal’s Tree and Landscape, Northborough, MA

Air spade tree transplanting

Read Full Post »

Dave Leonard from Lexington, KY, manned the root forensics station at the September 10 MAA air-tool workshop at Elm Bank.  He used an Air Knife to excavate the root ball of a 4″ caliper red maple that was showing signs of decline.

Turf provided the only competition for this tree, but it was showing dieback and early fall color at the MAA workshop.

Turf provided the only competition for this tree, but it was showing dieback and early fall color at the MAA workshop. Dave Leonard excavated at its base to take a look at its rooting habit for possible problems.

With soil blown away from the original root ball, it was clear that the tree’s planting had initiated some problems — parts of the wire basket appeared at the edges of the root ball, and cut root ends had sent out an explosion of fibrous roots that turned back toward the trunk.

Root ends cut during the tree's digging in the nursery sent out masses of fibrous roots, quite a few of which turned back toward the trunk.  The interface between root ball soil and surrounding soil can inhibit root growth into the surrounding soil; removing burlap, removing the wire basket, and breaking up the root ball soil, particularly at the ball's perimeter, can help promote the spread of new roots.

Root ends cut during the tree's digging in the nursery sent out masses of fibrous roots, quite a few of which turned back toward the trunk. The interface between root ball soil and surrounding soil can inhibit root growth into the surrounding soil; removing burlap, removing the wire basket, and breaking up the root ball soil, particularly at the ball's perimeter, can help promote the spread of new roots. Note the soil line some inches up the trunk flare; removing soil above the trunk flare will also benefit the tree and lessen its stress.

Dave cut away the roots that he could not redirect outward, and trimmed off the roots that had begun to circle the trunk flare’s base, which would otherwise eventually girdle the trunk and major anchor roots.  Some of these roots were the beginnings of a secondary root system put out by the tree in response to its stress.

Removing the worst of the inward-growing and circling roots improves the tree's chances for survival.

Removing the worst of the inward-growing and circling roots improves the tree's chances for survival.

After excavating the root ball, Dave intended to continue to blow soil out away from the root ball, creating a shallow crater  out at least to the tree’s dripline.  Removing turf from that zone would eliminate plant competition for soil moisture; the addition of 2-4″ of mulch (kept away from the trunk) would help the soil retain moisture and an even temperature, add organics to it over time, and lessen the chance of soil compaction that inhibits soil/air gas exchange.

Dave said that he would also consider lifting the tree a few inches, to bring its trunk flare into a better relationship with surrounding grade.  This tree had been in the ground for a couple of years; Dave suggested that tree lifting might be worth doing within two to four years of planting, but could be detrimental to the tree after that.  (The window of opportunity for lifting a tree would be a lot wider if an air tool were used, rather than a Bobcat or excavator, as the tree could be bare-rooted and set back in place with relatively little stress from the process.)

Demonstrating arborist at this station:

Dave Leonard, Dave Leonard Consulting Arborist, Inc., Lexington, KY
